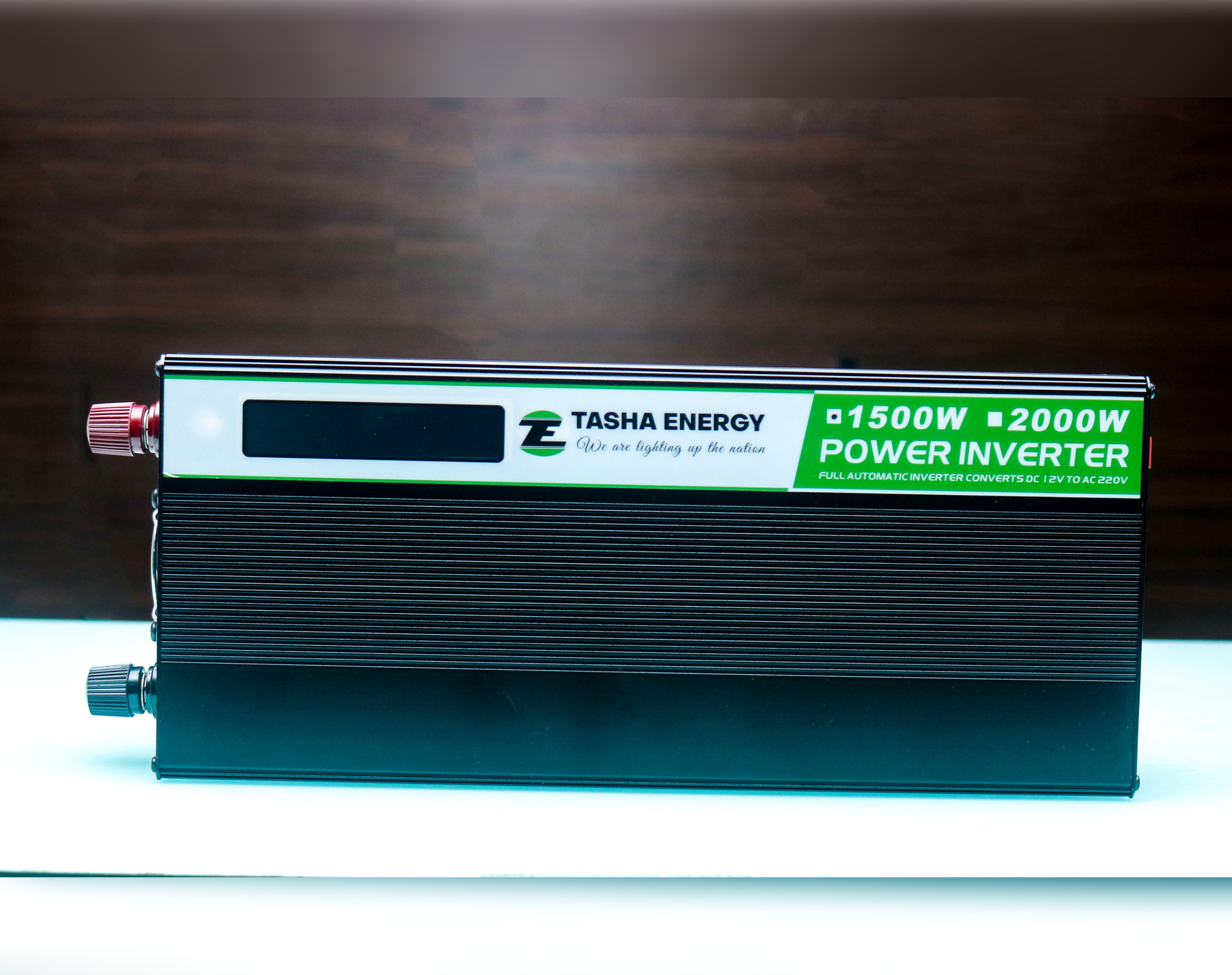

1500W Power Inverter
Specifications
Output power: 1500W
Output Power: 110V/220V
Output frequency: 60Hz/50Hz
Rated voltage: 12/24V
Product size: 325×127x75mm
Related products
-
2000W Power Inverter
Specifications
Output power: 2000W
Output Power: 110V/220V
Output frequency: 60Hz/50Hz
Rated voltage:12/24v
Product size: 325×127x75mm -
2.5 KVA 24V Mega Plus Inverter
Specifications
Pure Sine Wave
Maximum current load ≤2.0 amp
Output voltage no load – 220v±7v
Full load output voltage – 195v-220v
Output frequency no load full load – 50Hz ±1 Hz
Full load battery current – 65A±1A
Fan run should be ok
MAINS MODE
UPS MODE
low cut voltage – 180V±10V
low cut recovery – 190V±10V
high cut – 260V±10V
high cut recovery – 250V±10V
change over mains to ups- ≤10 ms
change over ups to mains – ≤30 ms
NORMAL MODE
low cut voltage – 100V±10V
low cut recovery – 110V±10V
high cut – 280V±10V
high cut recovery – 270V±10V
CHARGING MODE MAINSONLY MAINS AVAILABLE
charging current – 16 amp ±1 amp
boost charging voltage – 28.8v±0.4v
PROTECTIONS
Overload Protection >70 Amp, 6 retries
Battery Low Alarm 21v±0.2v
Battery Low Shut Down 20.0v±.2v
Over Temperature Protection 104°c±5°c
Short Ckts Protection – Should Be Ok
Mains Mcb Trip – Should Be Ok -
8.2 KVA 48V Hybrid Inverter
Specifications
MODEL: TE-8.2KW-48V
Maximum PV Input Power: 5400W+5400W
RATED OUTPUT POWER : 8200W/8200VA
GRID-TIE OPERATION
INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage : 360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage: 90VDC/120VDC
MPPT Voltage Range: 90VDC/450VDC
Maximum Solar Charge Current: 160A
Number.of MPPT Trakers /Maximum input current: 2/18A
GRID OUTPUT(AC).
Nominal Output Voltage: 220/230/240VAC
Ouput Voltage Range: 195-253 VAC
Nominal Output Current: 35.6 A
Frequency Range: 50±1Hz
Power Factor:＞0.99
OFF -GRID OPERATION
AC Start-up Voltage/Auto Restart Voltage:120- 140VAC/180VAC
Acceptable Input Voltage Range.90-280VAC or 170-260VAC
Maximum AC Input Current: 48.2A
Nominal Operating Freguency: 50Hz
Surge Power:16400VA
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage: 230VAC±5%
Output Waveform: Pure sine wave
Efficiency (DC to AC): 94%
BATTERY & CHARGE
Nominal DC Voltage. 48VDC
Matimim AC Charge Current: 140A
Maximum Solar Charge Current: 160A
PHYSICAL
Dimension. D*WH(mm):588*463*205
Not Weight(kg?): 14.2
INTERFACE.
Communication Port: RS232/RS4B5/WIFI / GPRS/LITHIUM BATTERY
OPERATING ENVIRONMENT
Humidity: 9% to 95% Relative Humidity (Non-condensing)
Operating Temperature:-10°C-50℃
Storage Temperature: -15°C-60℃
