Description
Specification
Rated Voltage: 12V/24V
Rated Current:30A
Max PV Voltage:50V Max PV Input power:
390W(12V) 780W(24V)
₦9,000.00

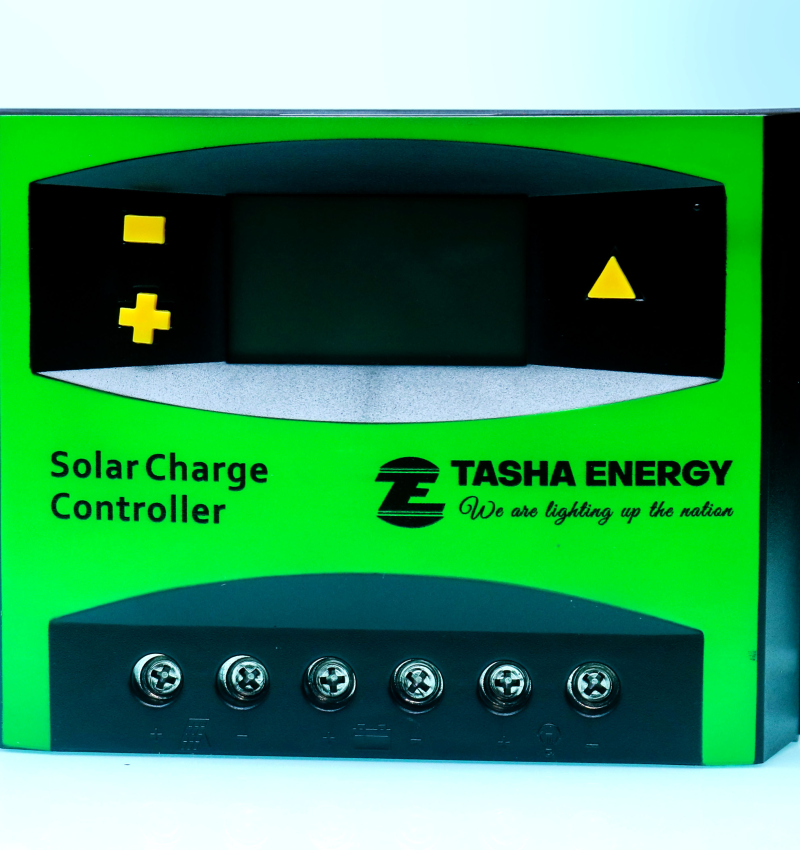

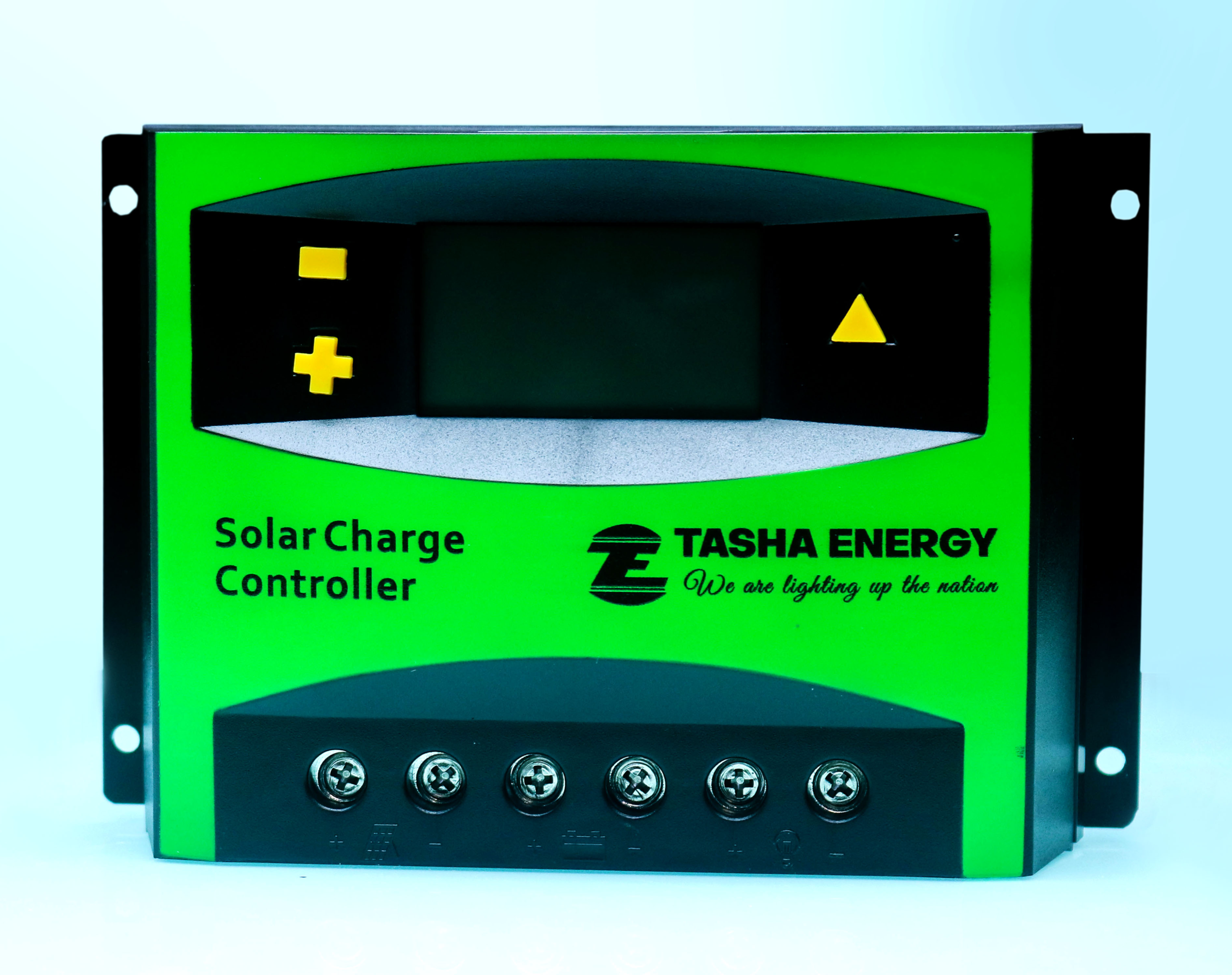

30 Amps PWM Charge controller
For those looking for a reliable yet cost-effective solution, the PWM charge controller series provides efficient charge regulation at a budget-friendly price. Available in 30A, 40A, and 60A models, these controllers support 12V and 24V battery systems, ensuring stable energy flow for small to medium solar applications. Though they don’t utilize MPPT technology, they efficiently manage solar input to prevent battery overcharge and deep discharge.
Related products
-
-
₦14,000.0040 Amps PWM Charge controller
For those looking for a reliable yet cost-effective solution, the PWM charge controller series provides efficient charge regulation at a budget-friendly price. Available in 30A, 40A, and 60A models, these controllers support 12V and 24V battery systems, ensuring stable energy flow for small to medium solar applications. Though they don’t utilize MPPT technology, they efficiently manage solar input to prevent battery overcharge and deep discharge.
-
100A MPPT Charge Controller
Specifications
1. Maximum PV open circuit voltage
150V (at the lowest temperature)
138V (at a standard temperature of 25º)
2. Minimum PV voltage
60V/80V
3. Rated Charge Current
60A
80A
100A
4. Maximum input power
12V
780W
1040W
1300W
24V
1560W
2080W
2600W
36V
2340W
3120W
3900W
48V
3120W
4160W
5200W
5. Output – Self-consume <35mA(48V)
6. MPPT highest accuracy – 99%
7. Maximum charging efficiency – 97%
8.Charging control mode – Multi-stage MPPT, Absorption, Float, Equalization, CV)
9. Float charge – 41.4V/55.2V
10. Boost charge – 43.2V/57.6V
11. Equalization charge – 43.8V/58.4V
12. Battery Type
GEL, SLD, FLD and USR(default), Lithium batteries customization series 3.7V,4 series
3.7V,4 series 3.2V,5 series 3.2V
13. Other
● Human interface – Color LCD with backlight, 3 buttons
● Cooling mode – Iron case heat sink and cooling fan
● Wiring – High current copper terminal≤25 mm* (3AWG)
● Temperature probe – 10K, line length 3 meters
● Communication mode – RS485, RJ45 port
● Working temperature range – -20~+55° C
● Storage temperature range – -30~+80° C
● Humidity – 10%~90% No condensation
