₦275,000.00

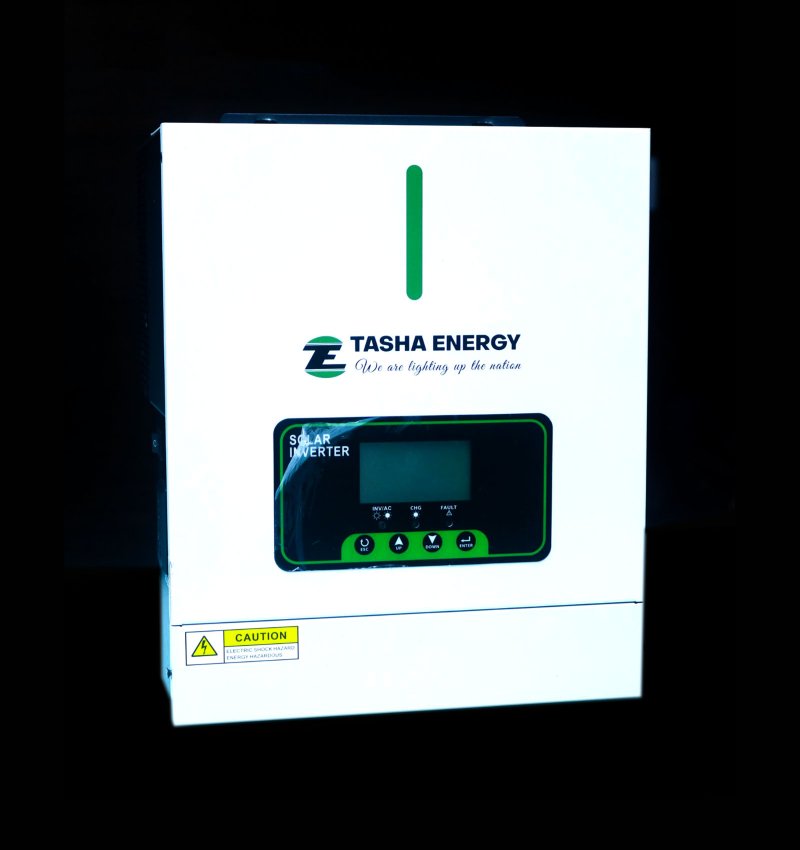

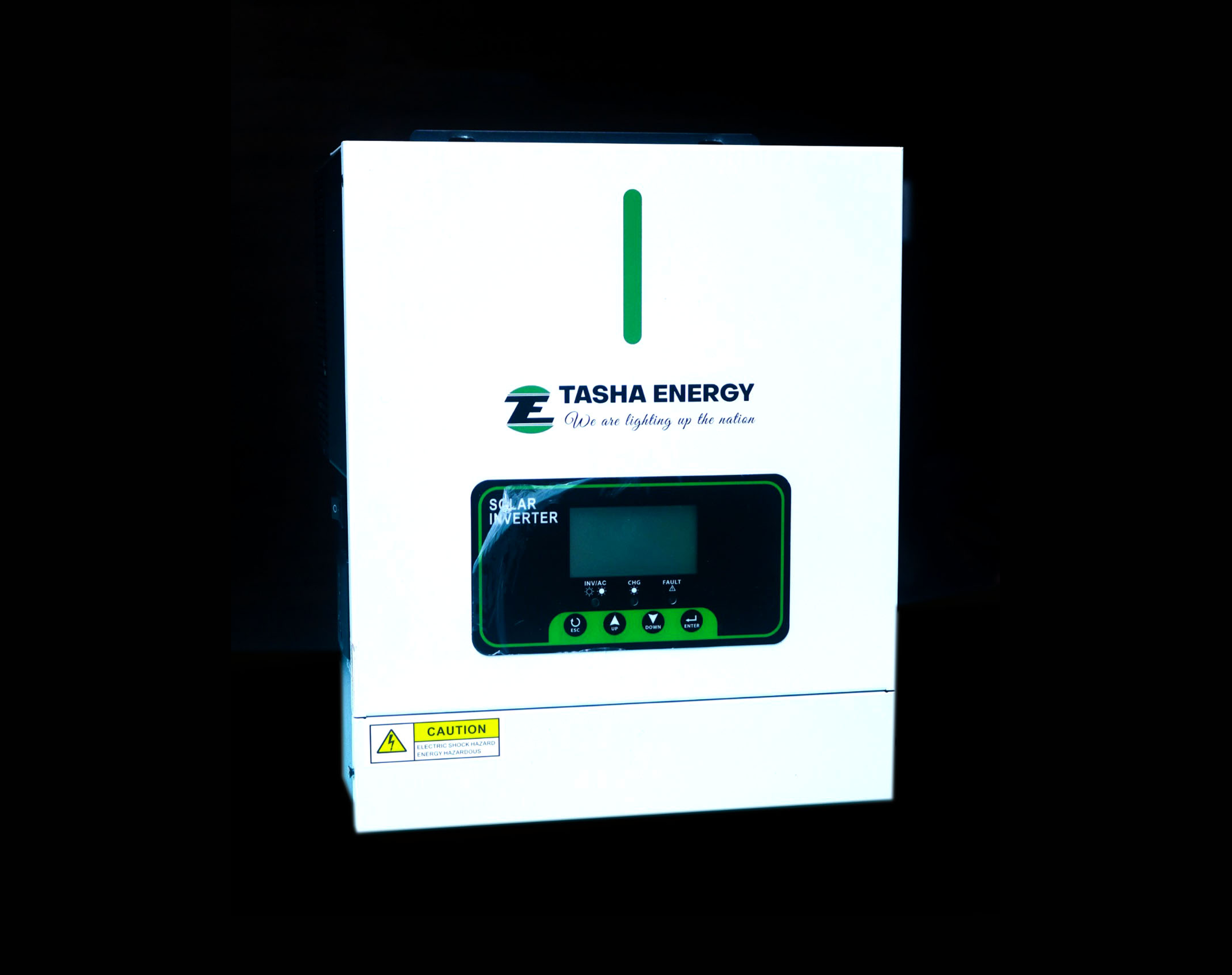

3.5KVA 24V Hybrid Inverter
Specifications
MODEL: TE-3.5KW – 24
Rated Power: 3500VA/3500W
INPUT:
Voltage: 230 VAC
Selectable Voltage Range: 170-280 VAC (For Personal Computers)
90-280 VAC (For Home Appliances)
Frequency Range: 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode): 230VAC+5%
Surge Power: 7000VA
Efficiency(Peak): 96% – 93%
Transfer Time:10ms (For Personal Computers)
20MS (For Home Appliances)
Waveform: Pure Sine Wave
BATTERY
Battery Voltage: 24 VDC
Floating Charge Voltage: 27VDC
Overcharge Protection: 32 VDC
Battery Input Voltage Range: 24 VDC
SOLAR CHARGER & MAXIMUM CHARGER
Solar Charger Type: MPPT
Maximum PV Array Open Circuit Voltage:: 500VDC
MPPT Range: 30-500VDC
Maximum PV Array Power:4000W
Maximum solar Charging Current: 100A
PHYSICAL
Dimension, D X. W. X H (mm): 330X278X98
Net Weight (kg»): 3.95
Communication Interface: RJ45/WIFI/GPRS\
OPERATING ENVIRONMENT
Humidity:5% to 95% Rotative Humidity(Non-condensing)
Operating Temperature:- 10C to 55C
Storage Temperature: – 15C to 60C
