₦200,000.00

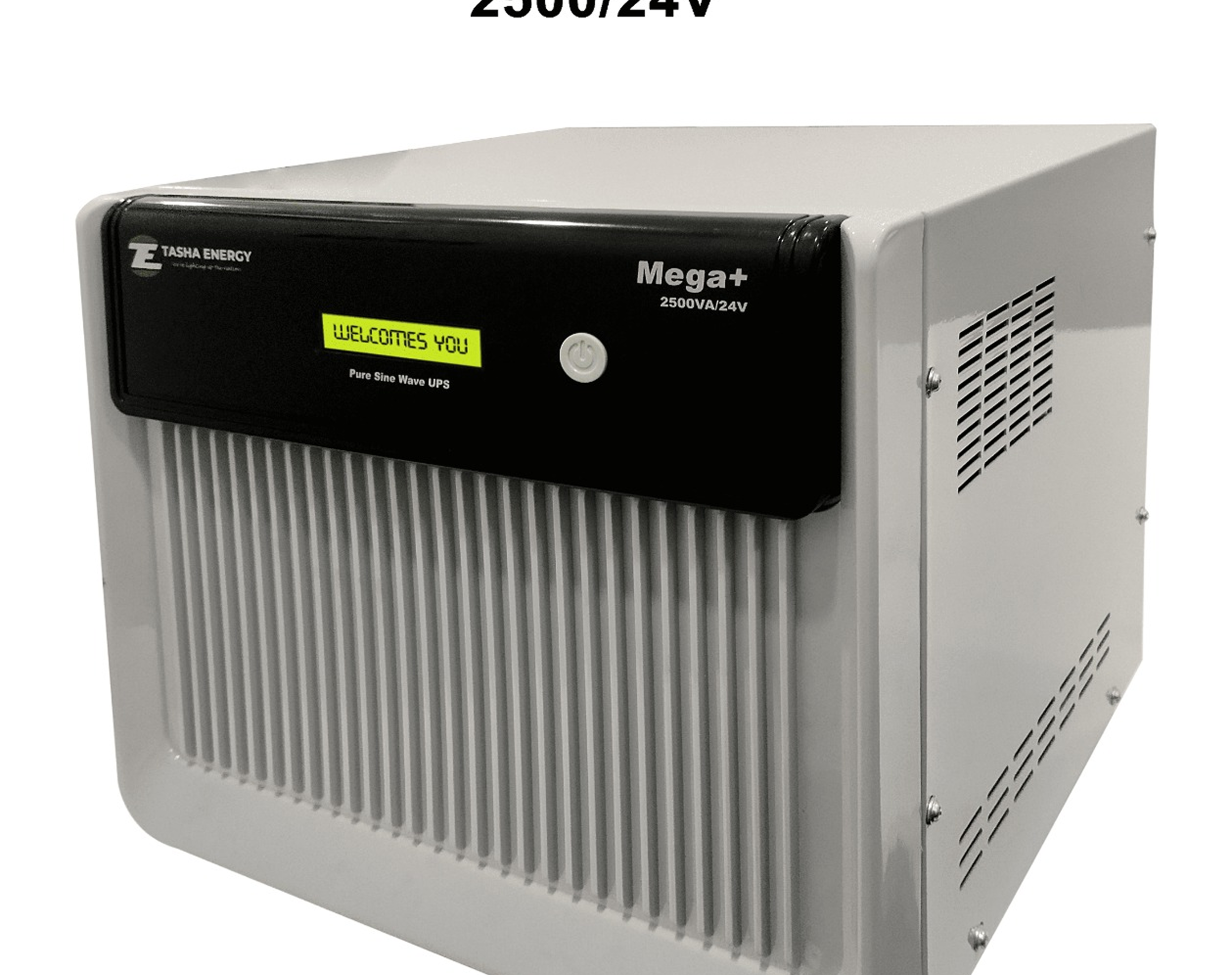

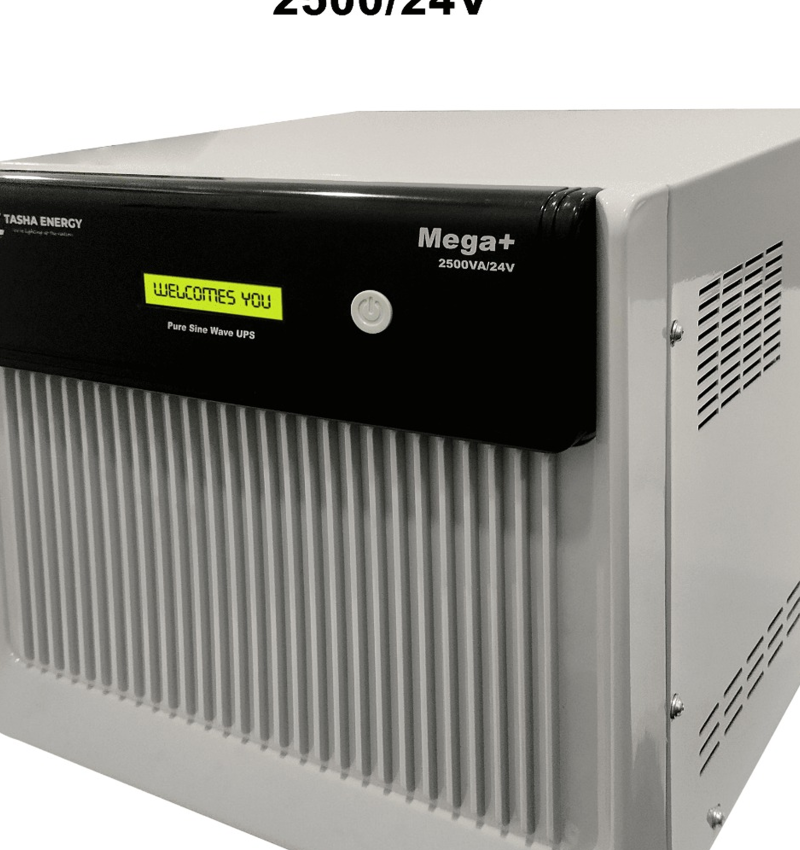

2.5 KVA 24V Mega Plus Inverter
Specifications
Pure Sine Wave
Maximum current load ≤2.0 amp
Output voltage no load – 220v±7v
Full load output voltage – 195v-220v
Output frequency no load full load – 50Hz ±1 Hz
Full load battery current – 65A±1A
Fan run should be ok
MAINS MODE
UPS MODE
low cut voltage – 180V±10V
low cut recovery – 190V±10V
high cut – 260V±10V
high cut recovery – 250V±10V
change over mains to ups- ≤10 ms
change over ups to mains – ≤30 ms
NORMAL MODE
low cut voltage – 100V±10V
low cut recovery – 110V±10V
high cut – 280V±10V
high cut recovery – 270V±10V
CHARGING MODE MAINSONLY MAINS AVAILABLE
charging current – 16 amp ±1 amp
boost charging voltage – 28.8v±0.4v
PROTECTIONS
Overload Protection >70 Amp, 6 retries
Battery Low Alarm 21v±0.2v
Battery Low Shut Down 20.0v±.2v
Over Temperature Protection 104°c±5°c
Short Ckts Protection – Should Be Ok
Mains Mcb Trip – Should Be Ok
